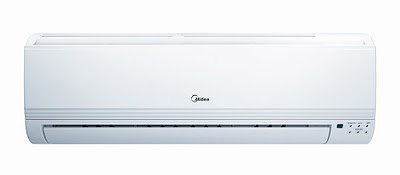

Grand Series - Cooling Only
Features
- Superior Filtration
- Active Carbon & Dust Filter
- Bio Filter Gold Fin Anti-corrosive Condenser
- Rotary Compressor
- Hot Start
- Auto Restart
- Sleep Mode
- Remote Control
- Two Direction Air Vane
- Built-In Electronic Diagnostics
- Service Valve Protection Cover
- 5 Year Residential Warranty
- SSS Warranty Service System
Specifications
| Model Number | MSG-12CRN1QC7G |
| Power Supply | 1Ph, 220-240V, 50Hz |
| Cooling Capacity | 3.25 kW |
| Cooling Input | 910 W |
| Cooling Rated Current | 4.1 A |
| Cooling EER | 3.55 w/w |
| Energy Rating Cooling (CEC/MEPS) | 2.5 Star (Rating under previous standard 6 Star) |
| Moisture Removal | 1.2 L/h |
| Max Input Consumption | 1300 W |
| Max Current | 7.0 A |
| Compressor Type | Rotary |
| Indoor Air Flow (H, M, L) | 195 / 160 / 130 L/sec |
| Indoor Noise Level (H/M/L) (Sound Pressure) | 42 / 36 / 30 dB(A) |
| Indoor Unit Dimension (WxHxD) | 906 x 286 x 235 mm |
| Indoor Unit Weight (net/gross) | 11.5 / 14.5 kg |
| Outdoor Noise Level (Sound Pressure) | 53 dB(A) |
| Outdoor Noise Level (Sound Power) | 60 dB(A) |
| Outdoor Unit Dimension (WxHxD) | 780 x 250 x 540 mm |
| Outdoor Unit Weight (net/gross) | 27 / 29 kg |
| Refrigerant Type R410A | 850 g |
| Refrigerant Piping - Liquid Side/Gas Side | 6.35 / 12.7 mm |
| Refrigerant Piping - Max Pipe Length | 20 m |
| Refrigerant Piping - Difference in Level | 8 m |
