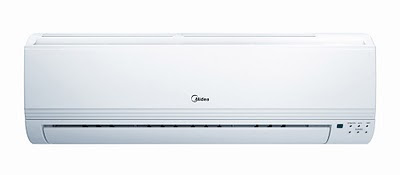

Grand Series - Cooling Only
Features
- Superior Filtration
- Active Carbon & Dust Filter
- Bio Filter Gold Fin Anti-corrosive Condenser
- Rotary Compressor
- Hot Start
- Auto Restart
- Sleep Mode
- Remote Control
- Two Direction Air Vane
- Built-In Electronic Diagnostics
- Service Valve Protection Cover
- 5 Year Residential Warranty
- SSS Warranty Service System
Specifications
| Model Number | MSG-28CRN1QC2GPW |
| Power Supply | 1Ph, 220-240V, 50Hz |
| Cooling Capacity | 8.0 kW |
| Cooling Input | 2600 W |
| Cooling Rated Current | 11.6 A |
| Cooling EER | 3.05 w/w |
| Energy Rating Cooling (CEC/MEPS) | 2 Star (Rating under previous standard 4.5 Star) |
| Moisture Removal | 3.0 L/h |
| Max Input Consumption | 3500 W |
| Max Current | 17.0 A |
| Compressor Type | Rotary |
| Indoor Air Flow (H, M, L) | 360 / 310 / 275 L/sec |
| Indoor Noise Level (H/M/L) (Sound Pressure) | 48 / 45 / 42 dB(A) |
| Indoor Unit Dimension (WxHxD) | 1250 x 325 x 230 mm |
| Indoor Unit Weight (net/gross) | 18 / 22 kg |
| Outdoor Noise Level (Sound Pressure) | 61 dB(A) |
| Outdoor Noise Level (Sound Power) | 70 dB(A) |
| Outdoor Unit Dimension (WxHxD) | 895 x 330 x 860 mm |
| Outdoor Unit Weight (net/gross) | 66 / 71 kg |
| Refrigerant Type R410A | 2400 g |
| Refrigerant Piping - Liquid Side/Gas Side | 9.53 / 19.0 mm |
| Refrigerant Piping - Max Pipe Length | 25 m |
| Refrigerant Piping - Difference in Level | 10 m |
