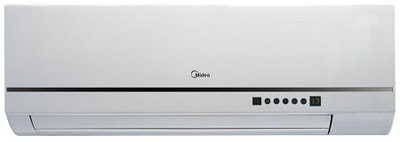

Grand Series - Cooling Only
Features
- Superior Filtration
- Active Carbon & Dust Filter
- Bio Filter Gold Fin Anti-corrosive Condenser
- Rotary Compressor
- Hot Start
- Auto Restart
- Sleep Mode
- Remote Control
- Two Direction Air Vane
- Built-In Electronic Diagnostics
- Service Valve Protection Cover
- 5 Year Residential Warranty
- SSS Warranty Service System
Specifications
| Model Number | MSG-09CRN1QC7G |
| Power Supply | 1Ph, 220-240V, 50Hz |
| Cooling Capacity | 2.65 kW |
| Cooling Input | 750 W |
| Cooling Rated Current | 3.6 A |
| Cooling EER | 3.55 w/w |
| Energy Rating Cooling (CEC/MEPS) | 2.5 Star (Rating under previous standard 6 Star) |
| Moisture Removal | 1.0 L/h |
| Max Input Consumption | 1200 W |
| Max Current | 6.7 A |
| Compressor Type | Rotary |
| Indoor Air Flow (H, M, L) | 165 / 125 / 95 L/sec |
| Indoor Noise Level (H/M/L) (Sound Pressure) | 39 / 34 / 28 dB(A) |
| Indoor Unit Dimension (WxHxD) | 815 x 280 x 195 mm |
| Indoor Unit Weight (net/gross) | 9 / 11 kg |
| Outdoor Noise Level (Sound Pressure) | 53 dB(A) |
| Outdoor Noise Level (Sound Power) | 60 dB(A) |
| Outdoor Unit Dimension (WxHxD) | 780 x 250 x 540 mm |
| Outdoor Unit Weight (net/gross) | 25 / 27 kg |
| Refrigerant Type R410A | 700 g |
| Refrigerant Piping - Liquid Side/Gas Side | 6.35 / 9.53 mm |
| Refrigerant Piping - Max Pipe Length | 20 m |
| Refrigerant Piping - Difference in Level | 8 m |
